SMT Machines

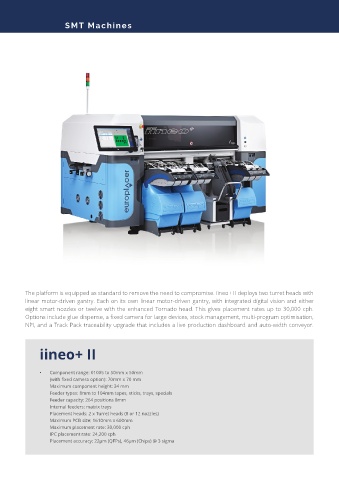

The platform is equipped as standard to remove the need to compromise. iineo+ II deploys two turret heads with
linear motor-driven gantry. Each on its own linear motor-driven gantry, with integrated digital vision and either
eight smart nozzles or twelve with the enhanced Tornado head. This gives placement rates up to 30,000 cph.
Options include glue dispense, a fixed camera for large devices, stock management, multi-program optimisation,
NPI, and a Track Pack traceability upgrade that includes a live production dashboard and auto-width conveyor.

iineo+ II

• Component range: 01005 to 50mm x 50mm
(with fixed camera option): 70mm x 70 mm
Maximum component height: 34 mm
Feeder types: 8mm to 104mm tapes, sticks, trays, specials
Feeder capacity: 264 positions 8mm
Internal feeders: matrix trays
Placement heads: 2 x Turret heads (8 or 12 nozzles)
Maximum PCB size: 1610mm x 600mm
Maximum placement rate: 30,000 cph
IPC placement rate: 24,200 cph
Placement accuracy: 22µm (QFPs), 46µm (Chips) @ 3 sigma
