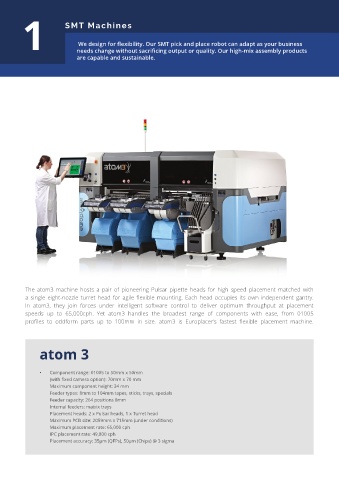

1 SMT Machines

We design for flexibility. Our SMT pick and place robot can adapt as your business
needs change without sacrificing output or quality. Our high-mix assembly products
are capable and sustainable.

The atom3 machine hosts a pair of pioneering Pulsar pipette heads for high speed placement matched with
a single eight-nozzle turret head for agile flexible mounting. Each head occupies its own independent gantry.
In atom3, they join forces under intelligent software control to deliver optimum throughput at placement
speeds up to 65,000cph. Yet atom3 handles the broadest range of components with ease, from 01005
profiles to oddform parts up to 100mm in size. atom3 is Europlacer’s fastest flexible placement machine.

atom 3

• Component range: 01005 to 50mm x 50mm
(with fixed camera option): 70mm x 70 mm
Maximum component height: 34 mm
Feeder types: 8mm to 104mm tapes, sticks, trays, specials
Feeder capacity: 264 positions 8mm
Internal feeders: matrix trays
Placement heads: 2 x Pulsar heads, 1 x Turret head
Maximum PCB size: 2059mm x 715mm (under conditions)
Maximum placement rate: 65,000 cph
IPC placement rate: 49,800 cph
Placement accuracy: 35µm (QFPs), 50µm (Chips) @ 3 sigma
