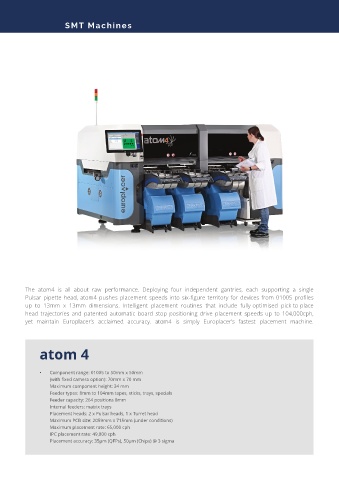

Page 5 - europlacer_catalogue_2020

SMT Machines

The atom4 is all about raw performance. Deploying four independent gantries, each supporting a single
Pulsar pipette head, atom4 pushes placement speeds into six-figure territory for devices from 01005 profiles
up to 13mm x 13mm dimensions. Intelligent placement routines that include fully-optimised pick-to-place
head trajectories and patented automatic board stop positioning drive placement speeds up to 104,000cph,
yet maintain Europlacer’s acclaimed accuracy. atom4 is simply Europlacer’s fastest placement machine.

atom 4

• Component range: 01005 to 50mm x 50mm
(with fixed camera option): 70mm x 70 mm
Maximum component height: 34 mm
Feeder types: 8mm to 104mm tapes, sticks, trays, specials
Feeder capacity: 264 positions 8mm
Internal feeders: matrix trays
Placement heads: 2 x Pulsar heads, 1 x Turret head
Maximum PCB size: 2059mm x 715mm (under conditions)
Maximum placement rate: 65,000 cph
IPC placement rate: 49,800 cph
Placement accuracy: 35µm (QFPs), 50µm (Chips) @ 3 sigma
